Vibranon PS

leistungsstarke Schwingungisolierung

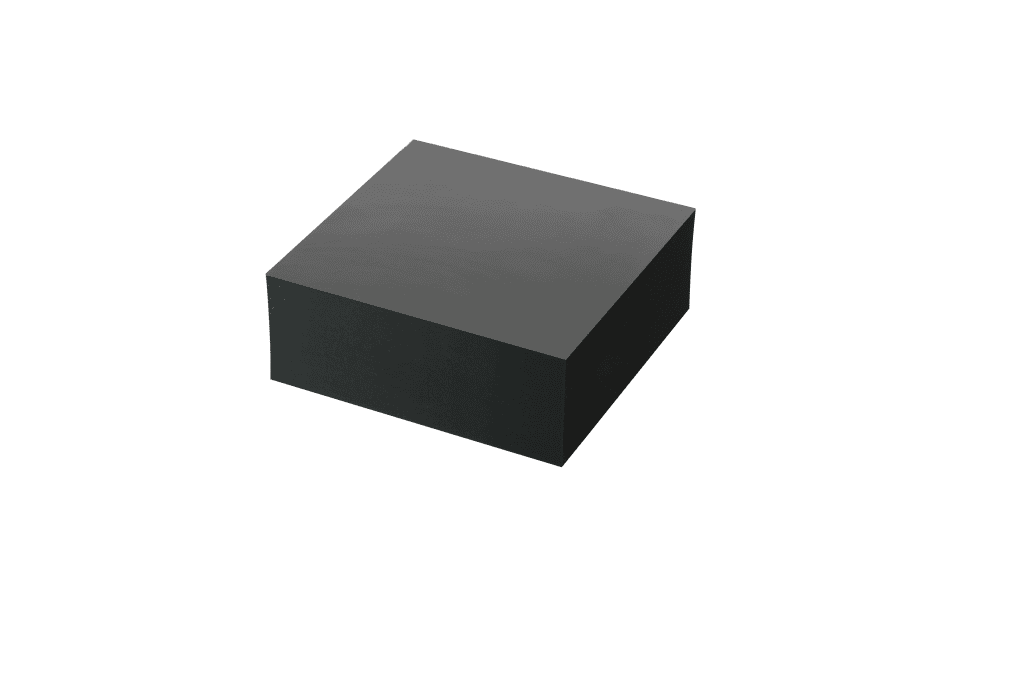

Das Vibranon PS ist ein unbewehrtes Elastomerlager, das speziell für die Schwingungsisolation und Körperschalldämmung entwickelt und optimiert wurde. Dank seiner speziell entwickelten Naturkautschukmischung bietet er hervorragende Dämpfungseigenschaften. Er kommt in verschiedenen Bereichen zum Einsatz, darunter Hochbau, Maschinen- und Anlagenbau sowie Verkehrswegebau.

Produktinformation lesen >>

besondere Merkmale

Hochbelastbar – formatabhängig bis 5 N/mm² statischer Dauerlast
Geringe Eigenfrequenz – Erhöht die Effizienz der Schwingungsisolierung
Langlebig & widerstandsfähig – hohe mechanische Festigkeit und sehr geringes Kriechmaß
Hohe Energieabsorption – Reduziert mechanische Belastungen auf Bauwerke und Maschinen
Einfache Integration – Anpassbar an verschiedene Konstruktionsanforderungen
Hohe Elastizität – für optimale Anpassung an Belastungssituation
Widerstandsfähig – Beständig gegen Feuchtigkeit, Temperaturschwankungen und Alterung

Lagerformat
Belastbarkeit
Frequenzbereich

Je nach Anforderung ist der Werkstoffe in nahezu in allen beliebigen Abmessungen herstellbar.

Lagerhöhe. t=25mm

Die Belastbarkeit des Lagers hängt vom Formfaktor ab. Die Größe des Lagers wird entsprechend den dynamischen Anforderungen festgelegt, wobei zulässige Druckspannungen von 5 N/mm² eingehalten werden.

Tieffrequente Abstimmungen bis ca. 8 Hz sind realisierbar, wobei Standardlager bereits Eigenfrequenzen ab ca. 10 Hz ermöglichen.

Downloads

Produktbeschreibung

Bemessungstabelle

Beispielbemessung

Gesamtdokumention

→
